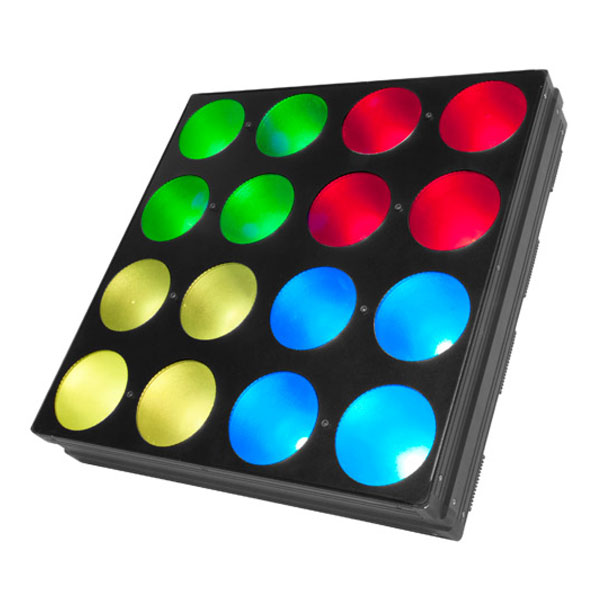

Chauvet Professional Nexus 4×4

Description

The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues.

Nexus™ 4×4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus™ 4×4 promises a hard-to-match visual impact.

  • Achieve vibrant colors with bright COB LEDs
  • Increase pixel mapping options by controlling pixels individually
  • Build large arrays by linking multiple panels together with integrated locks
  • Works seamlessly with Nexus™ 2×2 and Nexus™ 4×1
  • Design with flexible control options: Kling-Net, Art-Net™, or DMX
  • Use universal power connectors: Neutrik powerCON®, Neutrik etherCON®, 3- and 5-pin XLR DMX
  • Control Protocol: Art-Net™, Kling-Net, DMX
  • DMX Channels: 3, 5, 9, 48 or 53
  • Art-Net™ Channels: 48
  • Data Connectors: 3- and 5-pin XLR, Neutrik® etherCON®
  • Light Source: 16 LEDs (tri-color RGB) 27 W, (700 mA), 50,000 hours life expectancy
  • Built-in Automated Programs: Yes
  • Pixels: 4 x 4
  • Pixel Pitch: 115 mm
  • Strobe Rate: 0 to 20 Hz
  • Installed Optics: Reflector
  • Beam Angle: 45°
  • Field Angle: 75°
  • Illuminance (total): 484 lux @ 5 m
  • Color Temperature (range): 2,800 to 10,000 K
  • IP Rating: IP20, dry location
  • Cable Length: 5 ft (1.5 m)
  • Power Connection: Edison plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 401 W, 3.35 A @ 120 V, 60 Hz
  • Power and Current: 393 W, 1.90 A @ 208 V, 50 Hz
  • Power and Current: 394 W, 1.71 A @ 230 V, 50 Hz
  • Weight (single unit): 26.6 lb (12.07 kg)
  • Dimensions (single unit): 18.25 x 18.25 x 8.27 in (463.6 x 463.6 x 210 mm)
  • Housing Material: Aluminum alloy and steel
  • Accessories (optional): ArKaos Media Master Express™ + KN software
  • Approvals: CE, MET
