Lekos & Lenses

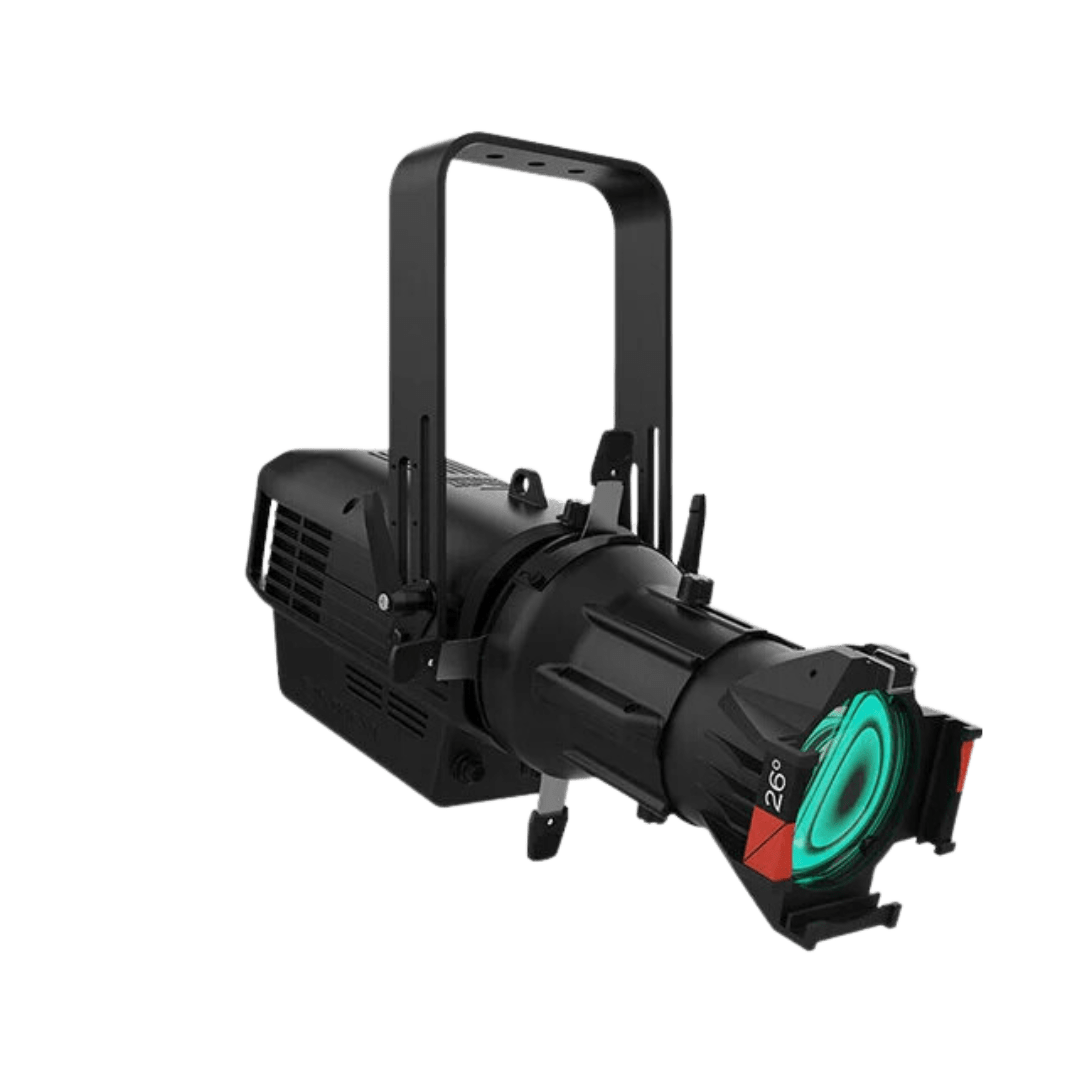

Chauvet Ovation Reve E-3 LED Leko

SKU: b7b8036b2e0d Category:

Description

Ovation Rêve E-3 is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It’s a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated “red shift” for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3 you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs, or buts. Simply and categorically unrivaLED.


SPECIFICATIONS

OPTICAL

  • Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy (L70)
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 5470K
  • CRI (3200 K): 95.4
  • Beam Angle (w/5° lens): 4.6°
  • Beam Angle (w/10° lens): 10°
  • Beam Angle (w/14° lens): 14.8°
  • Beam Angle (w/19° lens): 18.5°
  • Beam Angle (w/26° lens): 26°
  • Beam Angle (w/36° lens): 33.3°
  • Beam Angle (w/50° lens): 49.5°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 28.5°
  • Beam Angle (w/25°–50° lens)(Narrow): 23.6°
  • Beam Angle (w/25°–50° lens)(Wide): 40.5°
  • Field Angle (w/5° lens): 5.6°
  • Field Angle (w/10° lens): 11.1°
  • Field Angle (w/14° lens): 16°
  • Field Angle (w/19° lens): 21.6°
  • Field Angle (w/26° lens): 29.6°
  • Field Angle (w/36° lens): 37.1°
  • Field Angle (w/50° lens): 55.7°
  • Field Angle (w/15°–30° lens)(Narrow): 15.4°
  • Field Angle (w/15°–30° lens)(Wide): 32.2°
  • Field Angle (w/25°–50° lens)(Narrow): 25.8°
  • Field Angle (w/25°–50° lens)(Wide): 44.1°
  • Lumens (w/5° lens): 5,076
  • Lumens (w/10° lens): 11,250
  • Lumens (w/14° lens): 12,179
  • Lumens (w/19° lens): 12,156
  • Lumens (w/26° lens): 13,300
  • Lumens (w/36° lens): 13,223
  • Lumens (w/50° lens): 12,216
  • Lumens (w/15°–30° lens): 12,057
  • Lumens (w/25°–50° lens): 14,355
  • Illuminance (w/5° lens): 31,856 lux @ 5 m
  • Illuminance (w/10° lens): 18,924 lux @ 5 m
  • Illuminance (w/14° lens): 9,284 lux @ 5 m
  • Illuminance (w/19° lens): 5,635 lux @ 5 m
  • Illuminance (w/26° lens): 3,378 lux @ 5 m
  • Illuminance (w/36° lens): 2,085 lux @ 5 m
  • Illuminance (w/50° lens): 870 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 9,292 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 2,671 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 3,710 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 1,527 lux @ 5 m
  • Barrel Rotation: +/- 25°
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
  • Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
  • Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
  • Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
  • Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)
  • Dimensions (w/15°–30° lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
  • Dimensions (w/25°–50° lens, yoke up): 25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm)
  • Weight (fixture only): 18.6 lb (8.4 kg)
  • Weight (w/5° lens): 26 lb (11.7 kg)
  • Weight (w/10° lens): 24 lb (10.8 kg)
  • Weight (w/14° lens): 25.6 lb (11.6 kg)
  • Weight (w/26° lens): 24.2 lb (10.9 kg)
  • Weight (w/15°–30° lens): 32.3 lb (14.6 kg)
  • Weight (w/25°–50° lens): 29.8 lb ( 13.5 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
  • Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz
  • Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz
  • Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

  • Ovation Reve E-3
  • Seetronic Powerkon power cord
  • Ovation Metal Gobo Holder
  • Soft Focus Filter

REQUIRED ACCESSORIES

  • Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
